Name: Engineering Soil Test Drilling Machine for Geotechnical Investigation Purpose
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : ST-100

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Condition : New

Power Type : Diesel

Usage : Water Well

Voltage : Diesel Engine Driven

Power(W) : 13.4KW

Dimension(L*W*H) : 1960x850x1340mm

Weight : 480KGS

Warranty : 1 Year

Contact Now

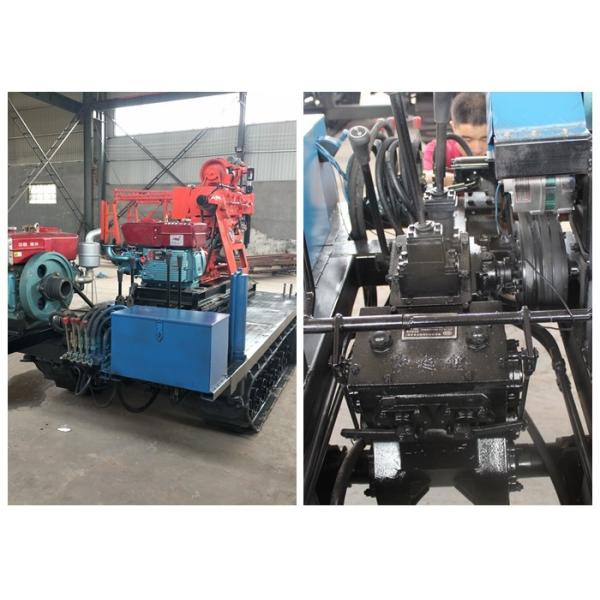

Hot Sale Engineering Soil Test Drilling Machine for Geotechnical Investigation Purpose

Product Advantage:

a. The machine is equipped with crawler chassis device,easy to move with fast speed.

b. Hydraulic oil pressure feed device,improve drilling defficiency.

c. Pressure gauge display the condition of the bottom of the drill hole.

d. Drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the labor itensity.

Product Parameter:

Model	ST-100
Drilling depth	110m
Drilling diameter	75-110mm
Drilling angle	90-75
Drill weight (No include diesel engine )	480kg
Unity machine dimensions	1960x850x1340mm
Rotary
spindle speed (three gears)	142285570r/min
Spindle stroke	450mm
Spindle max feeding capability	15KN
Spindle max lifting capability	25KN
windlass
Max.single line hoisting capacity	10KN
Rope length	27m
Stainless rope diameter	9.3mm
Mud pump
Type	Horizontal single urn twin-action
Displacement	95L/min
Max working pressure	1.2Mpa
Continue working pressure	0.7Mpa
Absorbing water pipe diameter	32mm
Drain water pipe diameter	25mm
Oil pump
Model	YBC-20/125
Rated pressure	12.5Mpa
Rated flow	20ml/h
Rated rotary speed	800-2500r/min
Diesel
Diesel engine	s1105 18HP 13.3KW
Rated rotary speed	2200r/min
Electric motor model	Y132M-4
Rated rotary speed	1440r/min
Rated power	7.5KW

Engineering Soil Test Drilling Machine for Geotechnical Investigation Purpose
